ECMS 97322 SR0019 B15 CREEK
Owner: PennDot District #1
Customer: Horizon Construction Group, Inc.
Location: Mercer County, PA
Product: Box Beams
Scope:
-
(5) 48” x 21” x 43’6” long box beams weighing approximately 14.5 tons each
​
-
8000 PSI concrete at 28 day strength with 2.2 tons of epoxy coated steel reinforcement
​
-
(34) low relaxation strands per beam, ½” diameter – 270 kips also included 50 durameter bearing pads & (40) ¾” threaded inserts
![Box Beam 5](https://static.wixstatic.com/media/7db49a_cb3c6f28e66c488bb84dc3a95fc3f37d~mv2_d_2391_1794_s_2.jpg/v1/fill/w_147,h_110,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/7db49a_cb3c6f28e66c488bb84dc3a95fc3f37d~mv2_d_2391_1794_s_2.jpg)

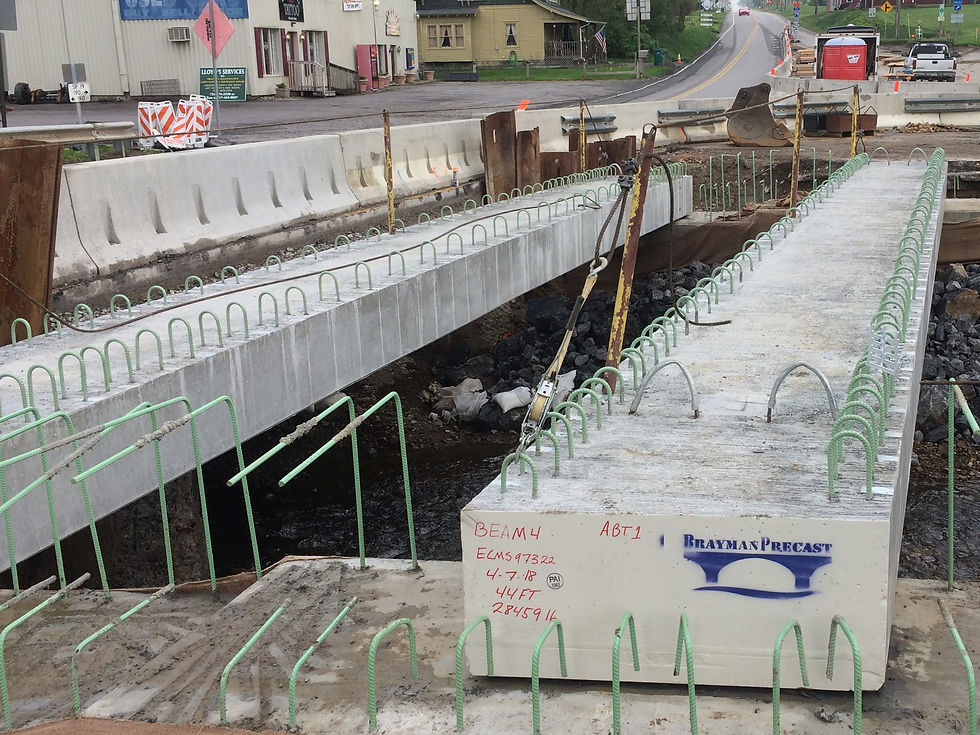

Box Beam 5
![Box Beam 2](https://static.wixstatic.com/media/7db49a_0d47b139c4bc46709ea6e51ebbecc0a1~mv2_d_2225_1669_s_2.jpg/v1/fill/w_147,h_110,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/7db49a_0d47b139c4bc46709ea6e51ebbecc0a1~mv2_d_2225_1669_s_2.jpg)

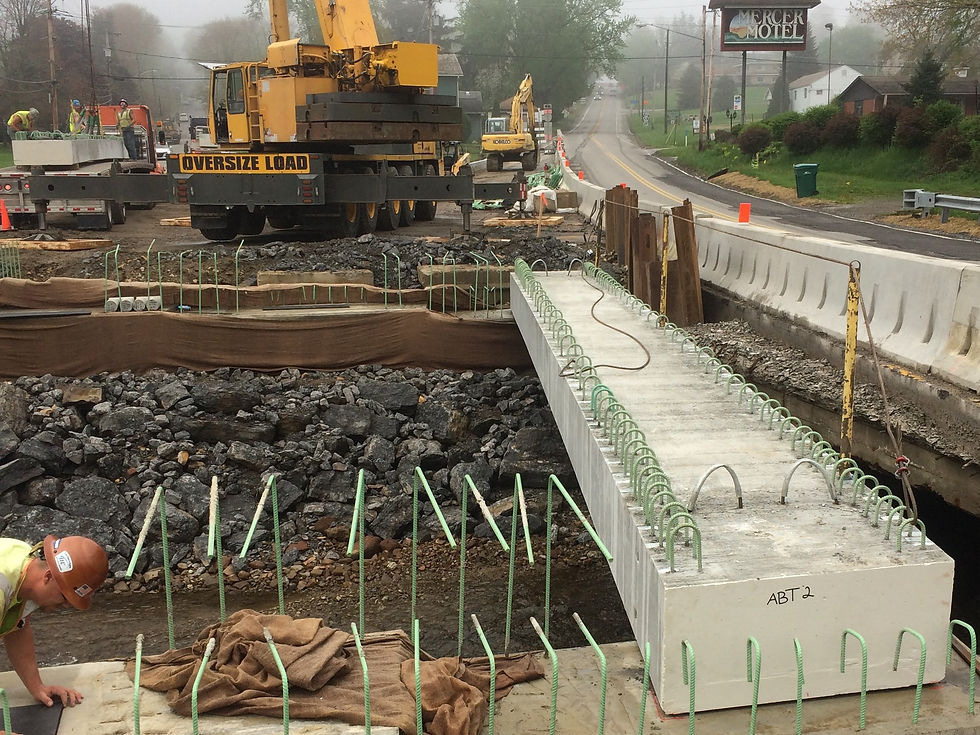

Box Beam 2
![Box Beam 3](https://static.wixstatic.com/media/7db49a_cd89ba693b204ceb88dcaf3202d2de7f~mv2_d_3264_2448_s_4_2.jpg/v1/fill/w_147,h_110,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/7db49a_cd89ba693b204ceb88dcaf3202d2de7f~mv2_d_3264_2448_s_4_2.jpg)
Box Beam 3
![Box Beam 5](https://static.wixstatic.com/media/7db49a_cb3c6f28e66c488bb84dc3a95fc3f37d~mv2_d_2391_1794_s_2.jpg/v1/fill/w_147,h_110,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/7db49a_cb3c6f28e66c488bb84dc3a95fc3f37d~mv2_d_2391_1794_s_2.jpg)
Box Beam 5
